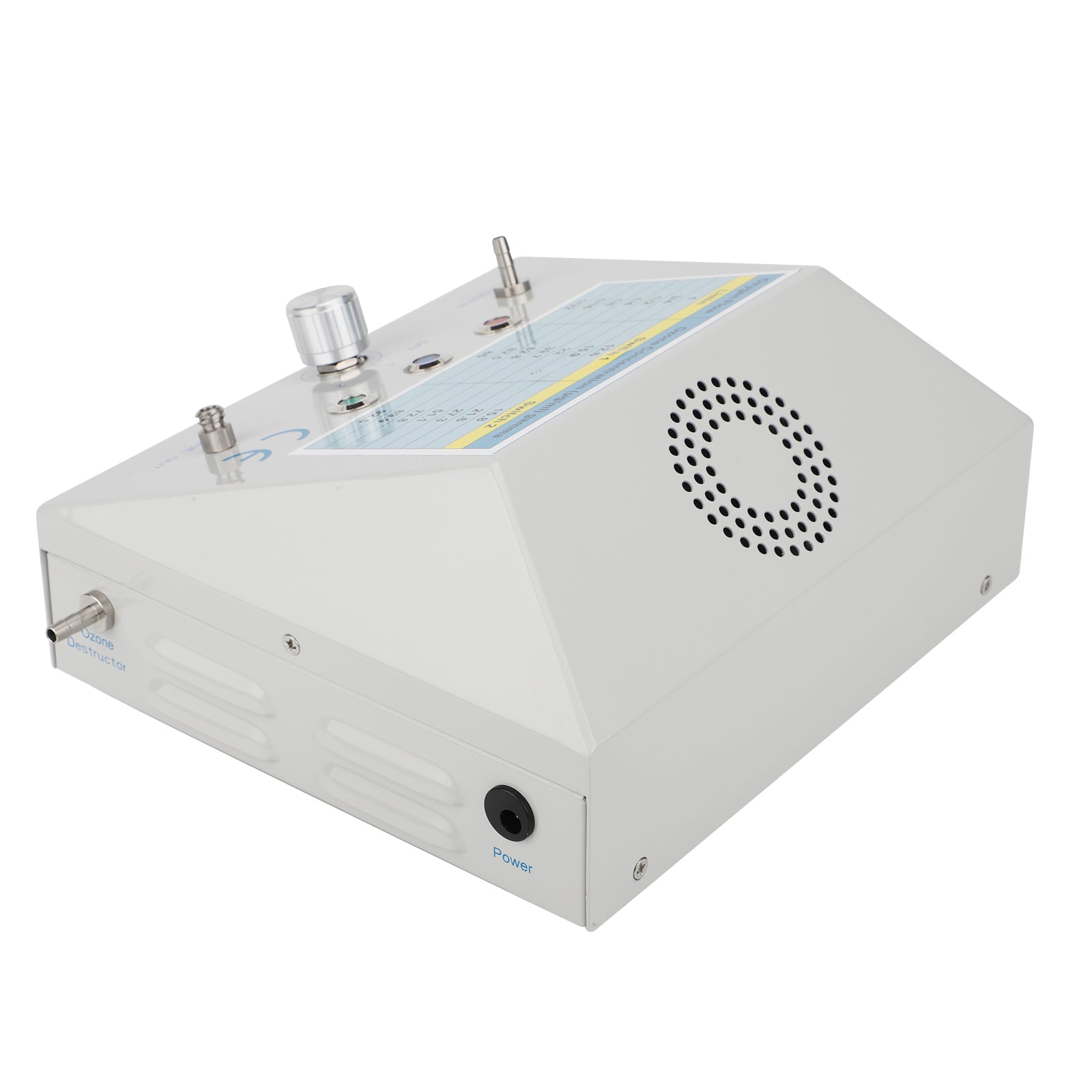

The AQUAPUREOZONE portable ozone therapy machine was using German latest corona discharge technology. To ensure the machine with a high performance, we use accurate quartz tube and Titanium electrode for the generator part, this is a small compact & economic design, easy operating and various concentration from 10-100 μg/ml, user can choose what concentration they would need to have according to our machine's capacity.

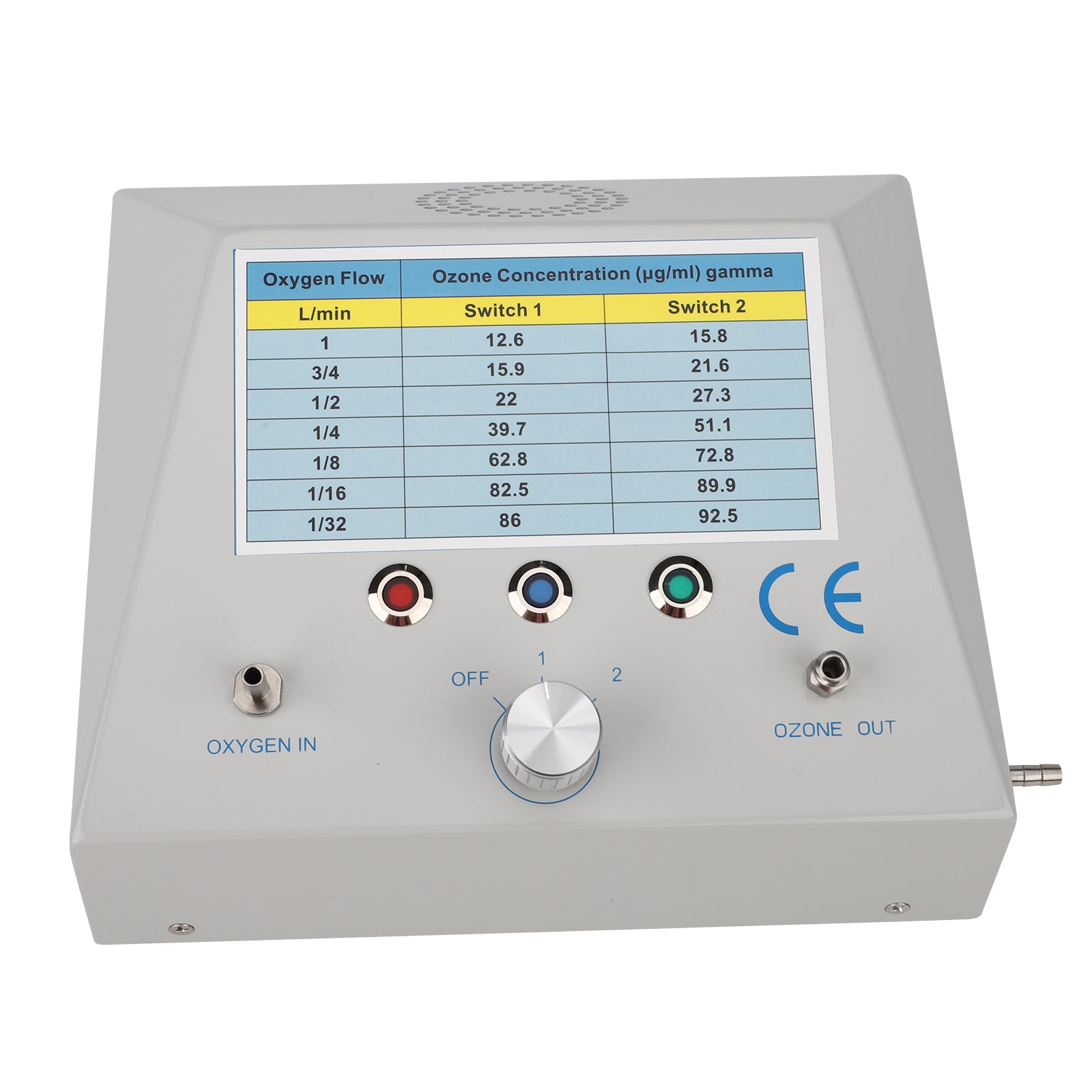

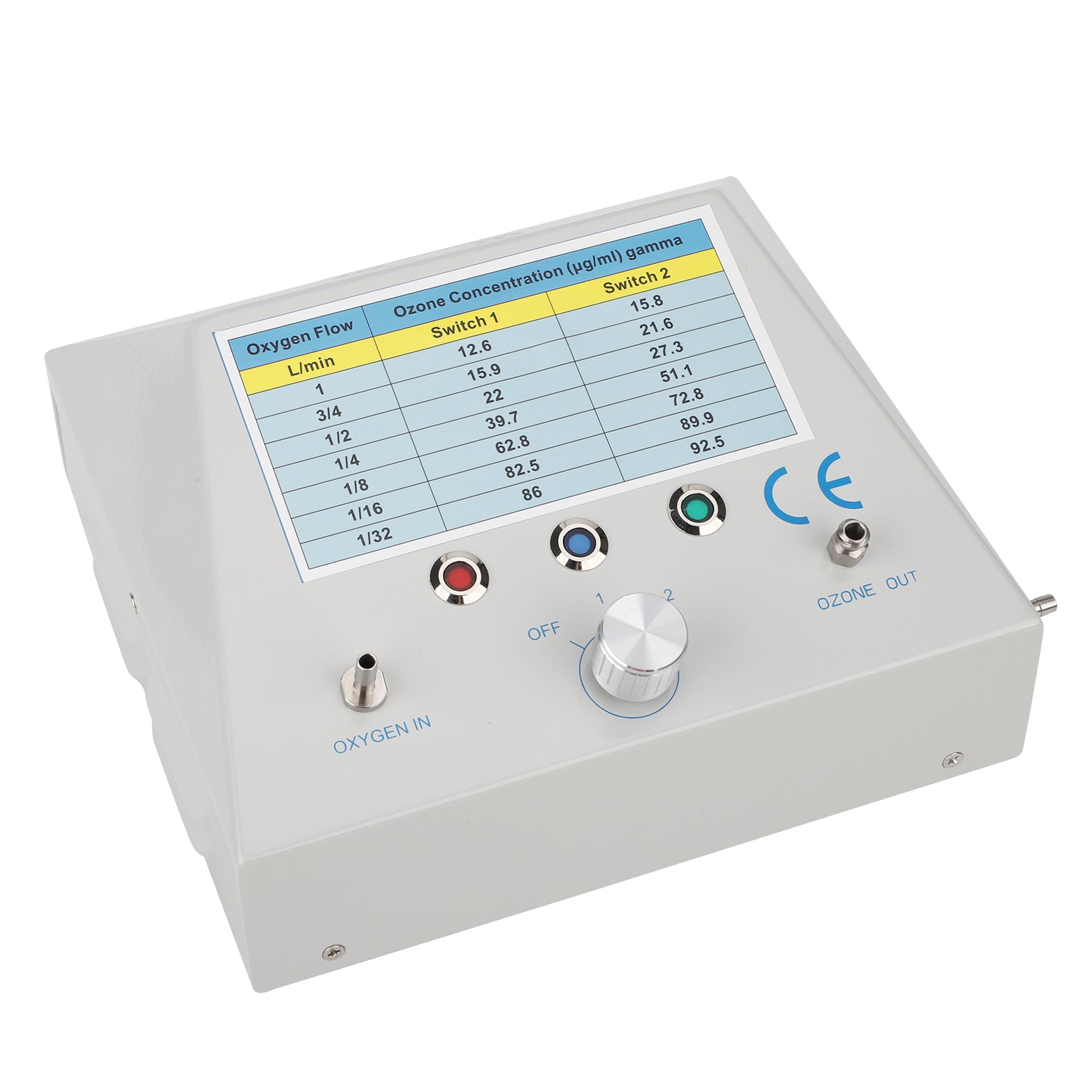

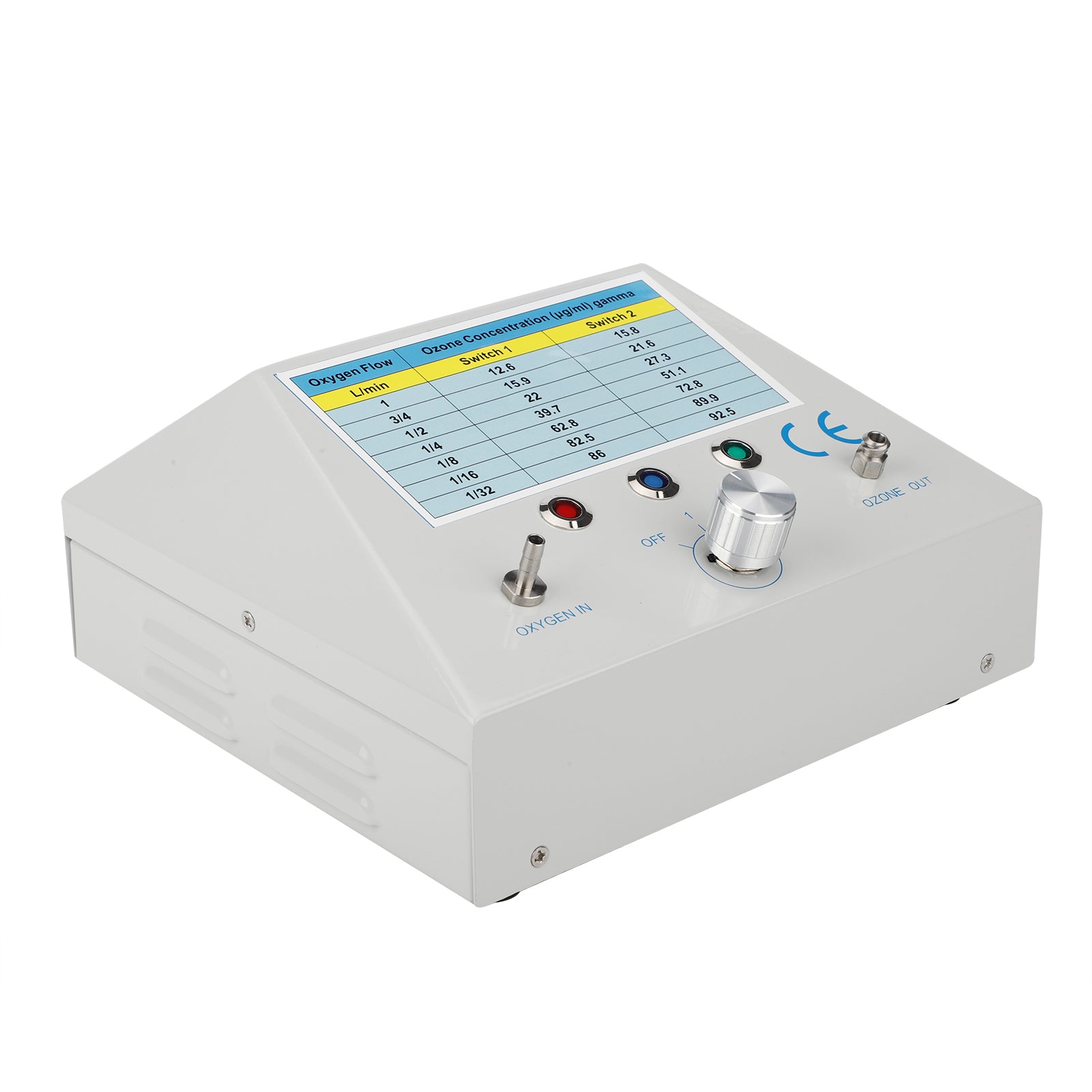

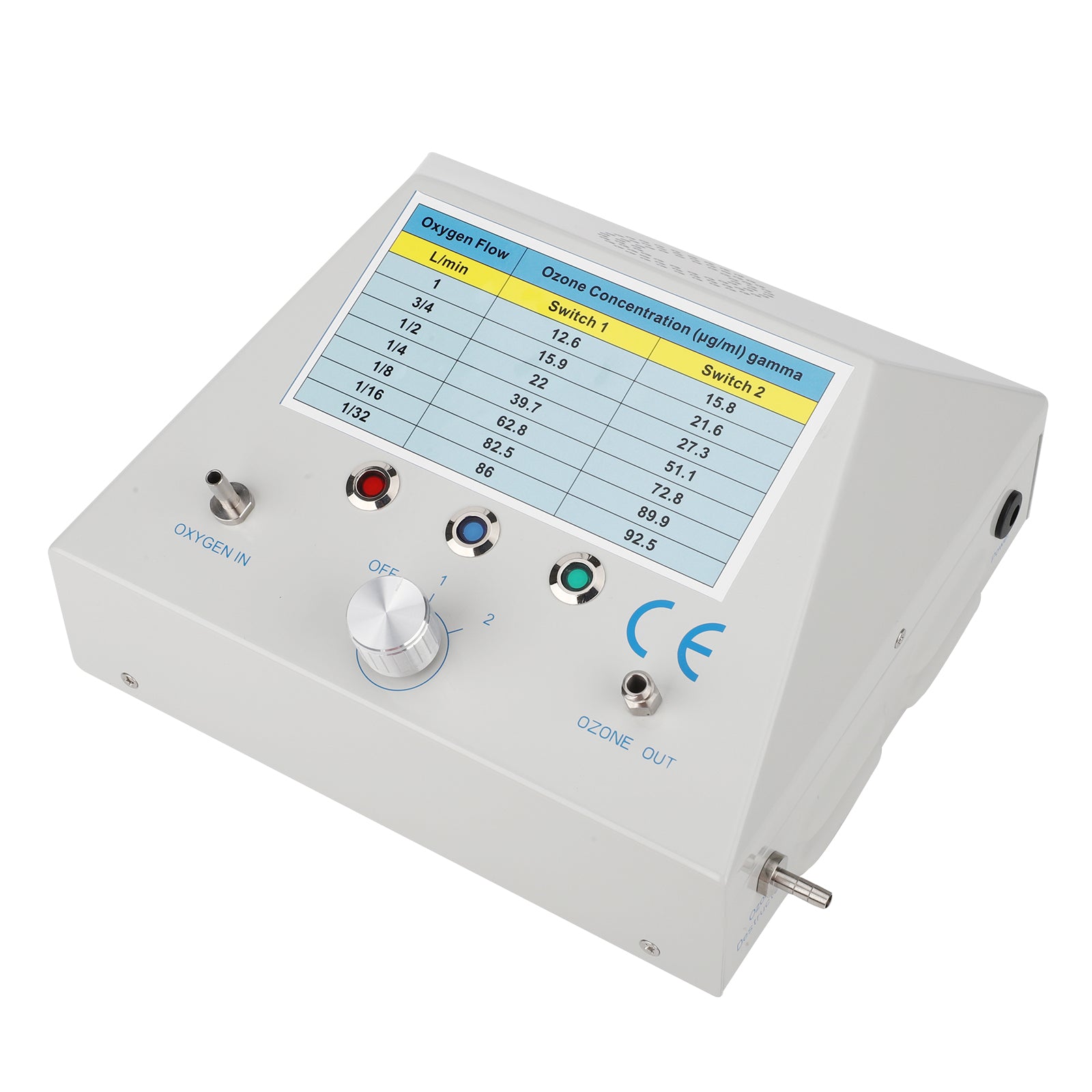

There are 4 switches are available, and it can deliver pure ozone from low to high concentrations (10-100 ug/mL) for different therapy applications.Specially, it has been built-in both the powerful ozone destructor and ozone fan and makes the machine very convenient to use.
Advantage:
1. High performance and compact design
2. Very stable performance and low power consumption
3. Very easy operation with very reasonable design
4. Built-in fan cooling system to make sure a long working life
5. Optional level to generate various concentration
6. Stable ozone concentration
7. Adjustable ozone concentration
8. 100% ozone resistance material
9. Ideal for all kinds of medical application
10. German ozone technology
Function:
1. Ozone concentration: 10-95μg/ml with oxygen source (adjustable)
2. Recommend oxygen flow: 1/32-1 L/min
3. Ozone generating method: German corona discharge
4. Product size: 206 x 180 x 105 mm
5. Box size: 320 x 265 x 140 mm
6. Voltage: 110-220 V
7. Power: 15 W
8. Weight: 4 KG with package
9. Cooling system: air cooling
| SPECIFICATION |
| Ozone concentration |
10 - 95 μg/ml with oxygen source (adjustable) |
| Oxygen flow |
1/32-1L/min |
| Continuous operation |
24 h/day with inside cooling system |
| Cooling system |
Air cooling,built-in a 15 CFM fan |
| Ozone generating method |
German corona discharge |
| Input voltage |
110V-220VAC |
| Power |
15W |
| Weight
|
4 KGS with package |
| Size(L×W×H) |
206×180×105 mm |
| Carton Size(L×W×H) |
651×575×320 mm
|
